Architecture Overview

A QC Lab simulation consists primarily of a Model object and an Algorithm object, held inside a Simulation object and executed by a Dynamics Driver. The Driver returns a Data object containing the trajectory-averaged results. This section outlines the components, shows how they fit together, and traces the path a single batch of trajectories takes from input to output.

---

Components

A QC Lab simulation is described by a total of five objects with well-defined responsibilities.

Object	Role	Defined in
Simulation object	Top-level container. Holds the Model object, the Algorithm object, the per-run settings on sim.settings, and the initial_state dictionary that seeds the wavefunction.	simulation.py
Model object	Physical system. Holds a Constants object on model.constants and a list of Ingredients on model.ingredients that compute the Hamiltonians and initial conditions.	model.py
Algorithm object	Dynamics method. Holds three Recipes — initialization_recipe, update_recipe, and collect_recipe — together with algorithm-specific settings on algorithm.settings.	algorithm.py
Constants object	Container for named constants and settings.	constants.py
Data object	Trajectory-averaged output container. Stores results in data.data_dict, captures the in-memory log, and can be saved to and loaded from HDF5 or .npz.	data.py

Two further dictionaries — the State object and the Parameters object — are utilized by the Dynamics Driver. See State and Parameters for details.

---

How the components fit together

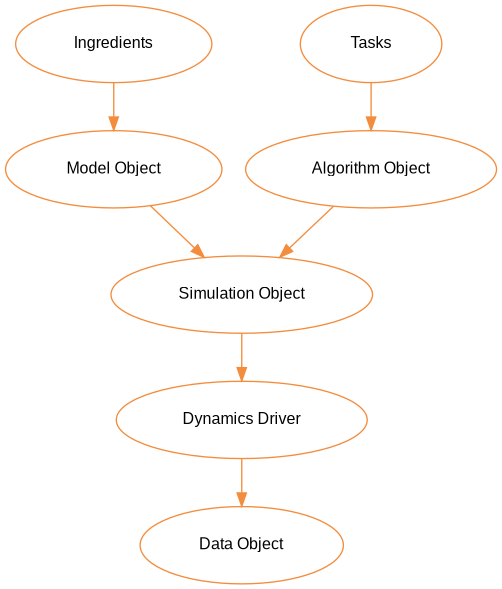

The diagram below summarizes how the components fit together; each node links to its dedicated section.

---

Building blocks

Adding new physics or a new dynamics method means writing the necessary Tasks and Ingredients and then modifying the Recipes and the Ingredient list.

The Model object and the Algorithm object are populated by Ingredients and Tasks. The Algorithm executes Tasks in chronological lists called Recipes.

Ingredients

An Ingredient is a function with signature f(model, parameters, **kwargs) that returns a physically meaningful quantity (a Hamiltonian, a gradient, an initialization, or a hop test). Some Ingredients — the sparse gradients in particular — return a tuple such as (inds, mels, shape). Ingredients are attached to the Model object as (slot_name, callable) tuples in model.ingredients. The list is consulted back-to-front, so appending ("h_qc", my_new_h_qc) overrides the existing Ingredient in the h_qc slot. See Ingredients.

Tasks and Recipes

A Task is a function with signature f(sim, state, parameters, **kwargs) returning (state, parameters). A Task reads named entries from the State and Parameters objects, calls Ingredients via Model.get, and writes named entries back. The *_name keyword convention lets a single Task be reused under different State entries by wrapping it in functools.partial(). Tasks fall into three categories — initialization Tasks, update Tasks, and collect Tasks — corresponding to the three Recipes.

A Recipe is a chronological list of Tasks held on the Algorithm object. Every Algorithm object exposes three Recipes: the initialization Recipe runs once before the dynamics start, the update Recipe runs on every update time step, and the collect Recipe runs on every collect time step. See Tasks.

---

The dynamics flow

A simulation is run by handing a populated Simulation object to one of the three Dynamics Drivers in qclab.dynamics: serial_driver(), parallel_driver_multiprocessing(), or parallel_driver_mpi(). The Driver divides num_trajs into batches of size batch_size, builds a fresh State object and a fresh Parameters object for each batch, and calls the dynamics core qclab.dynamics.run_dynamics() on each batch. Per-batch Data objects are then merged into a single Data object by Data.add_data using a trajectory-count-weighted average. See Drivers.

Inside a single batch, qclab.dynamics.run_dynamics() iterates over update time steps:

1. Before the dynamics start, the initialization Recipe runs once to populate the State and Parameters objects with the wavefunction, the complex-valued classical coordinate, and any algorithm-specific entries.

2. On every collect time step, the collect Recipe runs. Its final entries — the contents of state["output_dict"] — are then summed across the batch axis and divided by the running normalization factor by Data.add_output_to_data_dict, producing one trajectory-averaged row in data.data_dict[<key>] per collect time step.

3. On every update time step, the update Recipe runs, advancing the wavefunction and the complex-valued classical coordinate by dt_update.

The two granularities — dt_update for the integrator and dt_collect for the recorded output — are independently configurable on sim.settings.

---

Cross-compatibility of Models and Algorithms

A diabatic Algorithm runs against any Model object defined in a diabatic basis. The ab initio Algorithms pair only with the ab initio Model objects, and vice versa; mixing the two families is not supported.

---

Numerical kernels and tunable thresholds

The qclab.functions module collects the low-level math used by the Ingredients and Tasks shipped with QC Lab: the conversions between the complex-valued classical coordinate and the real-valued (q, p) pair (z_to_q, z_to_p, qp_to_z, dqdp_to_dzc, dzdzc_to_dqdp), batched matrix-vector helpers, RK4 sub-step kernels, the sparse-gradient inner product, gauge-fixing routines, and the numerical fewest-switches surface-hopping hop test. Hot loops are decorated with @njit from qclab.utils, which falls back to a no-op when Numba is unavailable.

The qclab.numerical_constants module holds numerical thresholds (SMALL, GAUGE_FIX_THRESHOLD, FINITE_DIFFERENCE_DELTA) and unit-conversion factors. See Numerical Constants.

Optional dependencies are gated by the DISABLE_NUMBA, DISABLE_H5PY, and DISABLE_ASE flags in qclab.utils, so QC Lab installs and runs without any of them. Features that depend on each are degraded accordingly.

---

Module map

The following tree is comprehensive for the top-level layout of src/qclab/.

src/qclab/
├── __init__.py               # Top-level imports and version
├── simulation.py             # Simulation class
├── model.py                  # Model class
├── algorithm.py              # Algorithm class
├── constants.py              # Constants class
├── data.py                   # Data class
├── utils.py                  # Internal utilities
├── numerical_constants.py    # Numerical constants
├── ingredients.py            # Ingredients shipped with QC Lab
├── functions.py              # Low-level math helpers
├── algorithms/               # Algorithm subclasses
├── dynamics/                 # Dynamics core and Drivers
├── models/                   # Model subclasses
├── tasks/                    # Initialization, update, and collect Tasks
└── interfaces/               # *ab initio* Interfaces
